Arc Magnet Manufacturer & Supplier





We manufacture sintered rare-earth arc magnets engineered for rotor assemblies in permanent magnet motors and generators. Our standard and custom configurations accommodate varying pole-arc coefficients and air-gap requirements.




Product Types & Categories

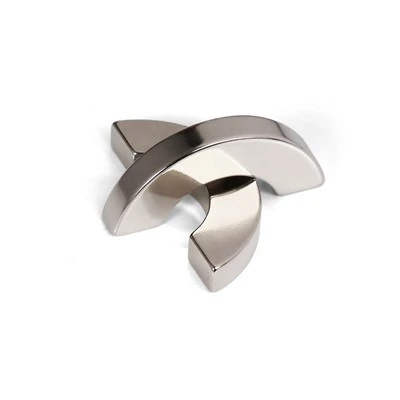

Sintered Neodymium (NdFeB) Arc Magnets

High remanence and energy product ((BH)max from 33 to 52 MGOe).
Optimized for high-torque density industrial and automotive traction motors.
Operating temperature ranges from Standard (80 deg C) to Ultra-High (220 deg C) grades (N, M, H, SH, UH, EH, AH series).



Samarium Cobalt (SmCo) Arc Magnets

Thermal stability up to 300 deg C to 350 deg C.
High intrinsic coercivity (Hcj) resistant to demagnetization in high-load or high-temperature environments (aerospace, defense, high-speed spindles).



Radial & Diametrical Oriented Arc Magnets

Custom magnetic orientation vectors aligned to specific stator-rotor flux interaction paths to minimize cogging torque and harmonic distortion.





Customization & OEM Services

Rotor efficiency depends on exact magnetic and mechanical tolerances. We machine arc magnets directly from raw sintered blocks to match your CAD parameters.

Dimensional Capabilities

Outer Radius (OR), Inner Radius (IR), Arc Angle (alpha), Axial Length (L), and Thickness (T) ground to +/- 0.02 mm tolerance.

Chamfering & Edge Protection

Precision edge grinding to prevent chipping during high-speed automated rotor gluing and assembly.

Magnetic Sorting

Flux sorting within +/- 1% variance per batch to eliminate rotor imbalance and magnetic eccentricity in multi-pole stators.

Serialization & Laser Marking

Data matrix or batch codes laser-etched onto non-working faces for strict traceability.







Quality Control & Compliance

Magnetic Flux Measurement: Hysteresis graph testing via Helmholtz coil and Permeameter at 20 deg C and 100 deg C to verify Br, Hcb, and (BH)max.



Dimensional Inspection: 100% optical sorting and Go/No-Go gauge testing for radius and angle profiles; CMM coordinate measuring for complex multi-segment assemblies.



Corrosion & Coating Integrity: Pressure cooker testing (PCT: 121 deg C, 2 atm, 100% RH) and salt-spray testing to verify plating adhesion.



Material Certification: Full Material Test Report (MTR) provided with chemical composition analysis and rare-earth raw material source verification.

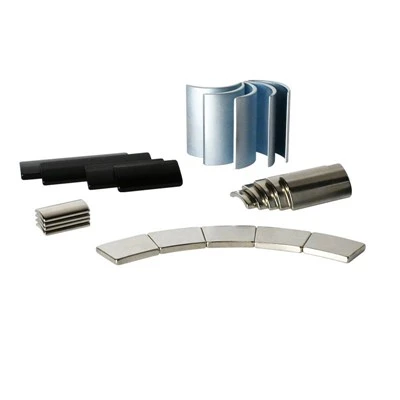

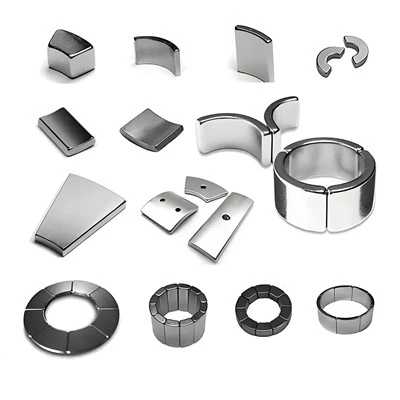

Rare Earth Arc Magnets
Packaging & Bulk Supply


Magnetic Shielding

Iron-lined corrugated master cartons and heavy-duty wooden crates reducing external magnetic field leakage to comply with IATA DGR packing instructions for air freight.

Individual Fixation

Custom high-density EVA foam trays preventing inter-part collision and edge chipping.

Anti-Oxidation Packaging

Vacuum-sealed moisture barrier bags with silica gel desiccant for ocean freight transit.

Inventory Programs

Consignment stocking and scheduled release frameworks available for high-volume automotive and industrial OEM contracts.



Certifications
productcate-1-1
productcate-1-1
productcate-1-1
productcate-1-1





FAQ





Q: How do you prevent high-temperature demagnetization in motor applications?

A: We select high-coercivity grades (such as UH, EH, or AH series) containing optimized Dysprosium (Dy) or Terbium (Tb) grain-boundary diffusion, ensuring the intrinsic coercivity (Hcj) exceeds the maximum demagnetizing field encountered at peak motor winding temperatures.

Q: What is the standard dimensional tolerance for custom arc magnets?

A: Standard machining tolerances are +/- 0.05 mm for radius and thickness, and +/- 0.1 deg for arc angle. High-precision grinding achieves +/- 0.015 mm upon engineering review.

Q: Can you supply arc magnets with customized magnetic orientation (e.g., radial or skew)?

A: Yes. We utilize specialized multi-pole alignment dies during pressing and pulsed magnetic field orientation fixtures for complex radial, parallel, or skew magnetization requirements.

Q: What coating should be selected for motor environments exposed to moisture?

A: Epoxy coating provides superior barrier protection against moisture and humidity compared to standard Ni-Cu-Ni plating, preventing surface oxidation and edge flaking during continuous operation.

Q: What is the typical lead time for custom prototype samples vs. mass production?

A: Prototype samples requiring custom tooling grinding take 10 to 15 business days. Mass production batches (quantities exceeding 10,000 pieces) require 25 to 35 business days depending on sintering schedules and coating requirements.

Q: What documentation is included with each shipment?

A: Each shipment includes a Certificate of Analysis (CoA) detailing magnetic performance parameters (Br, Hcb, (BH)max), dimensional inspection reports, and RoHS/REACH compliance declarations.



modular-1
Request a Quote

To receive an accurate technical and commercial proposal, please provide the following details via our engineering inquiry form or direct email:
1. 2D/3D CAD drawing (STEP, IGES, or PDF) with dimensions and tolerances.
2. Material grade specification or required operating temperature and magnetic field strength.
3. Plating / coating preference.
4. Annual consumption volume and target delivery schedule.

Technical Desk: zb16@magnets-world.com
Engineering Response: Stated response time: within 12 working hours
Custom Samples: Stated lead time: 7–10 business days, subject to confirmation
Stock Samples: Stated dispatch time: 48 hours, subject to availability
Manufacturing Locations: Siming District, Xiamen, Fujian — confirm the applicable production site for each order

As one of the leading arc magnet manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. Please rest assured to wholesale high quality arc magnet at competitive price from our factory. Customized orders are welcome.
